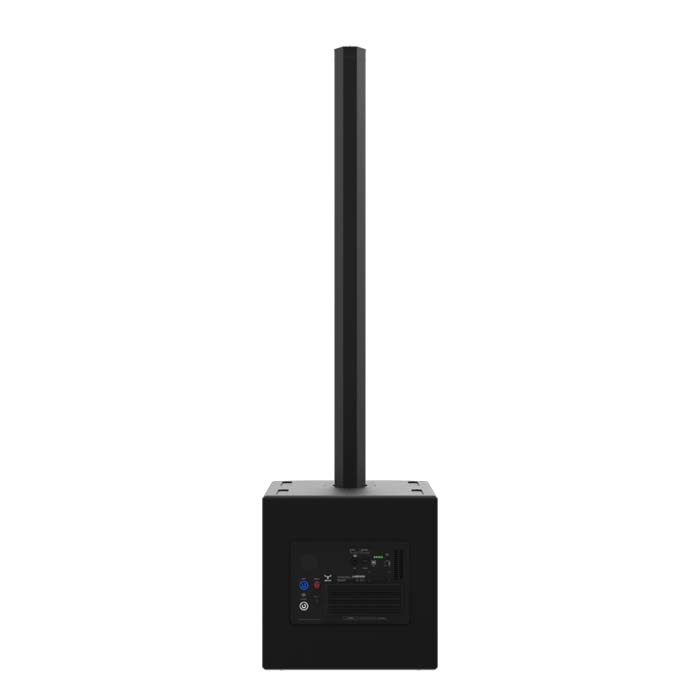

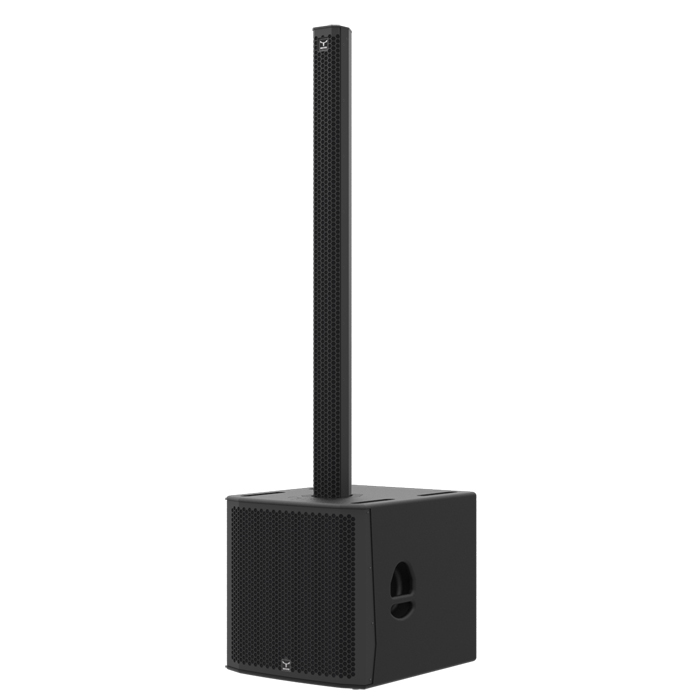

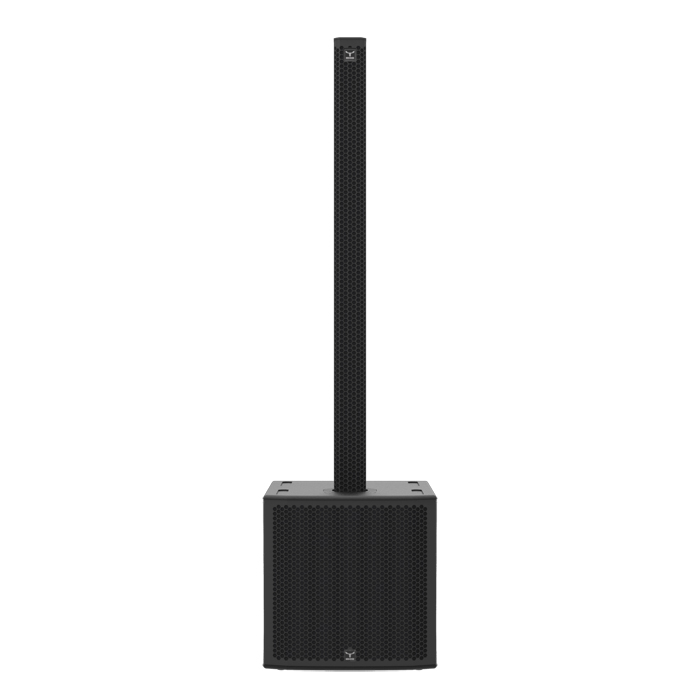

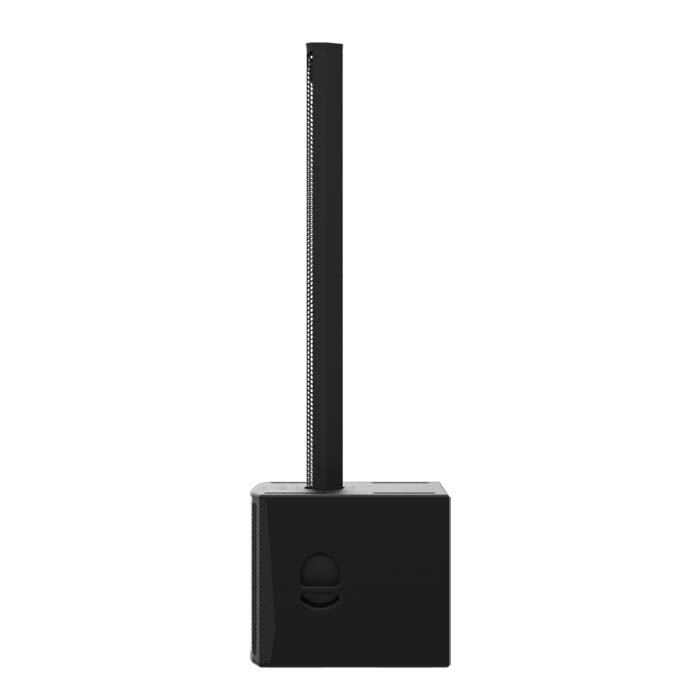

LANE 1400+

Key Features

  • Active “all-in-one” column PA system
  • Great coverage and well-balanced sound distribution
  • 15" (4in VC) LF active subwoofer
  • 8x 3" (0.75in VC) + 1" (0.98in VC) passive column speaker
  • Driven by a 2-channel Class D power amplifier
  • Fully programmable DSP with selectable presets (4)
  • Universal 85-264Vac mains for the active versions
  • Multi-pin connector to minimize setup time
  • LANE15+ prepared to fit a Pull-out Trolley handle (3472)
  • Rugged and durable 15mm birch plywood with polyurea coating
Interested in this Product? Contact us!

Tech Specs

Type

Active column PA system
Enclosure Design

Bass reflex [LANE15+]
Column sealed [LANE T803]
Power Output (RMS)

1000W / 1400W [LANE15+]
200W / 350W [LANE T803]
Frequency Range

40Hz - 180Hz [LANE15]
85Hz - 20kHz [LANE T803]
Transducer Type

15" (4in VC) LF EU transducer [LANE15+]
8x 3" (0.75in VC) MF [LANE T803]
1" (0.98in VC) HF EU transducer [LANE T803]
Dispersion

120° horizontal (average)
Crossover Frequency

DSP controlled with selectable presets
48KHz sampling frequency
24 bit AD/DA converter
Max. SPL (peak)

132dB @ 1m (system)
Amplifier type

Class D, 2 channel amplifier
Amplifier output

800W + 400W (continuous)
1600W (peak)
Input

XLR/jack combo connector
Output

XLR/M 3p
Indicators

Power, signal/preset, clip
Controls

Master level control, 4 selectable presets
Feature

Cooling by convection
AC Power Supply

Switching power supply, universal 85-264Vac
AC mains connector

Neutrik® powerCON, Power-in (blue)/Power-out (grey)
Protection

Over current, short circuit, thermal, DC and HF protections
Construction

15mm birch plywood, textured polyurea coating [LANE15]
Extruded aluminium profile w/ black powder coating [LANE T803]
Grille

Custom perforated metal grille with acoustic foam
Installation / Rigging / Flying

4 rubber feet on the back of LANE15+ to protect the amp

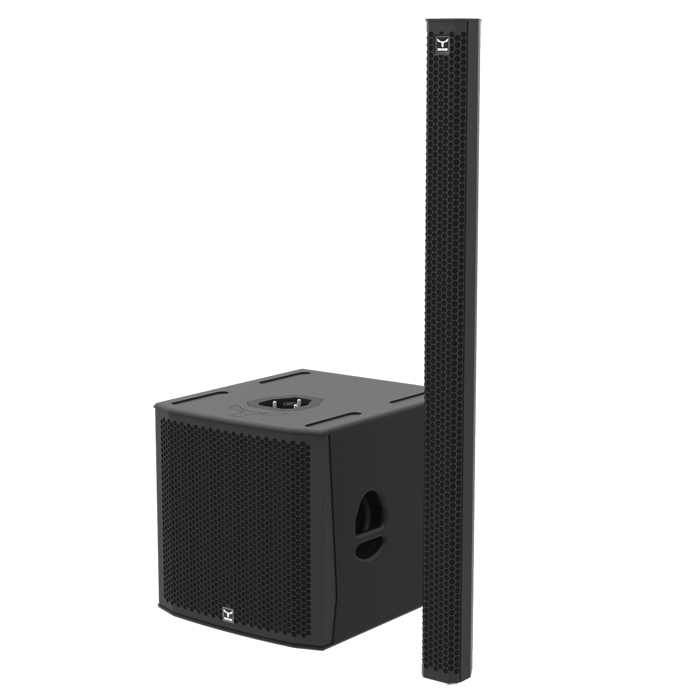

Plug-and-play column fitting
Custom multi-pin connector for T803
Height extender available (500mm)
LANE15+ prepared to fit a Pull-out Trolley handle (3472)
Dimensions (WxDxH)

530x550x430mm / 20.87x21.65x16.93in [LANE15+]
107x95x1320mm / 4.21x3.74x51.97in [LANE T803]
Weight

33Kg / 72.8lb [LANE15+]
8Kg / 17.6lb [LANE T803]
