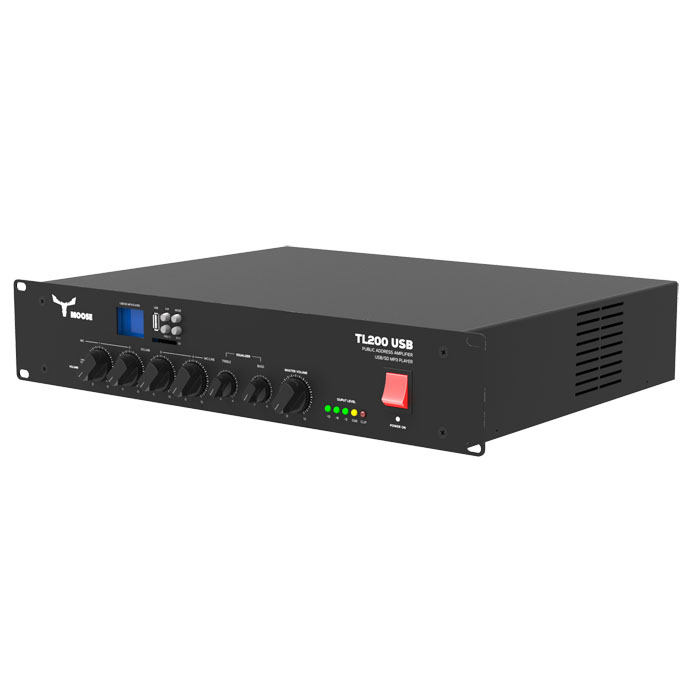

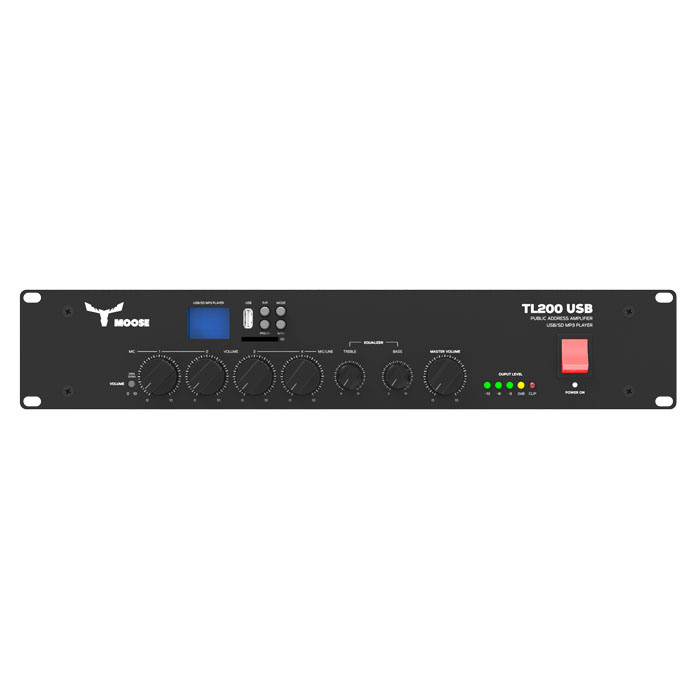

TL 200USB

Key Features

  • High quality PA amplifier
  • Installation PA mixer-amplifier
  • 4 Microphone inputs and 1 Line input
  • 4-16 ohm & constant-voltage outputs (70V and 100V)
  • FM tuner and MP3 USD/SD slot
  • Bass and Teble tone controls
  • Ding-dong and Priority muting by VOX
  • Built-in electronic protection circuitry
  • Solid construction for 19” rack - 2U mounting
Interested in this Product? Contact us!

Tech Specs

Type

PA mixer-amplifier

Power Output (RMS)

200W

Frequency Range

50Hz - 14kHz

T.H.D. (20Hz - 20kHz)

< 1% @ 1kHz

Signal-to-noise ratio

> 90 dB @ 1 kHz

Zones

No

Controls

Bass and Treble, Master,
Volume for MIC and Line in

Indicators

Power on, Signal and Clip

Inputs

Microphone, Line in

Outputs

4Ω, 8Ω and 100V line, AUX

Connectors

Input: 6.3mm Jack, RCA line
Output: Touch-proof binding posts

Phantom Power

+48V DC

Other Features

FM tuner, USB and SD card slots

Protections

Short circuit, thermal overload

Operation Voltage

230V AC (factory config.), 50–60 Hz

Power Consumption

220VA

Cooling

Continuously speed fan, 80mm / 230V AC

Dimensions (WxHxD)

2RU spaces, 345mm depth

Weight

9Kg
