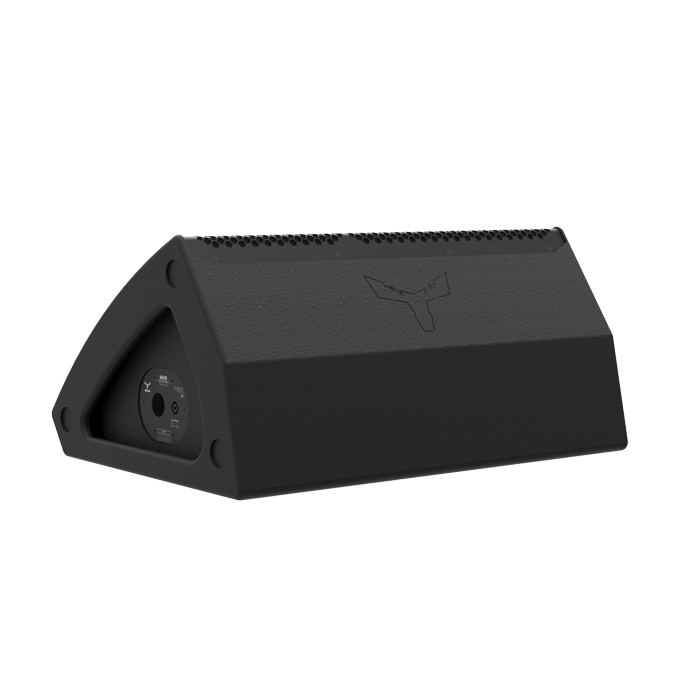

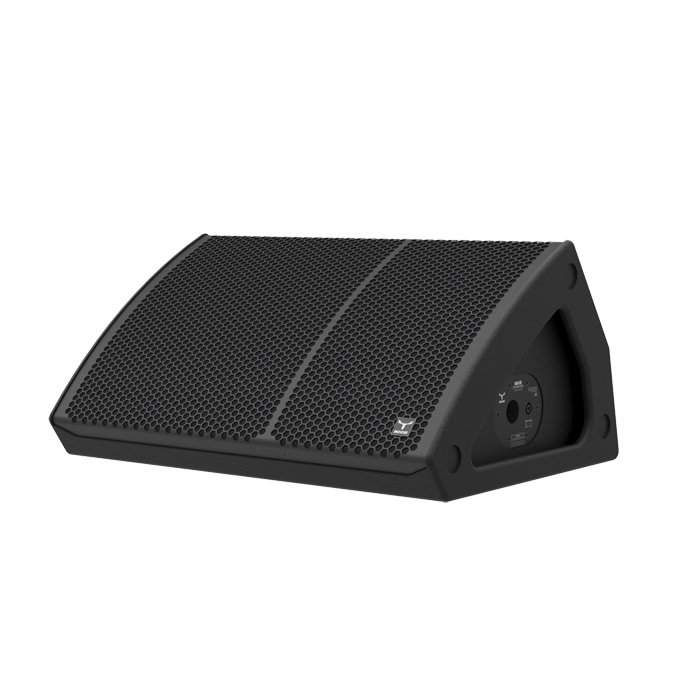

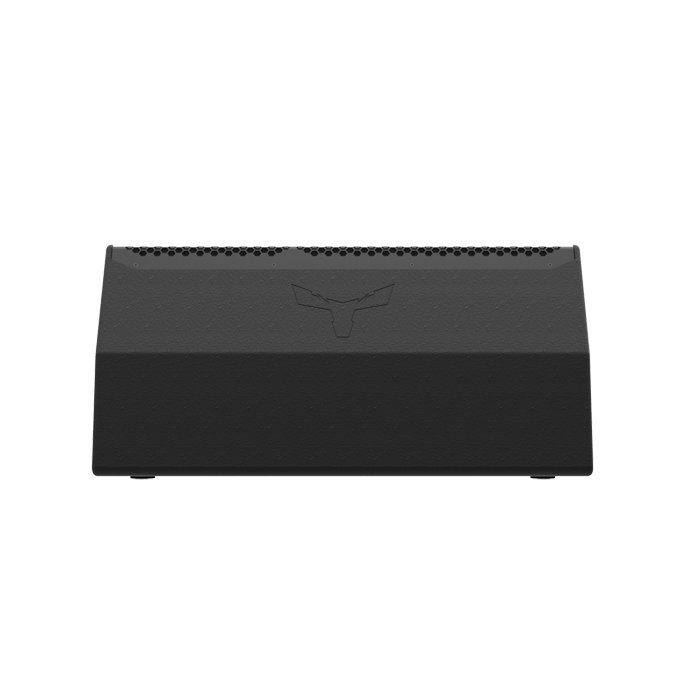

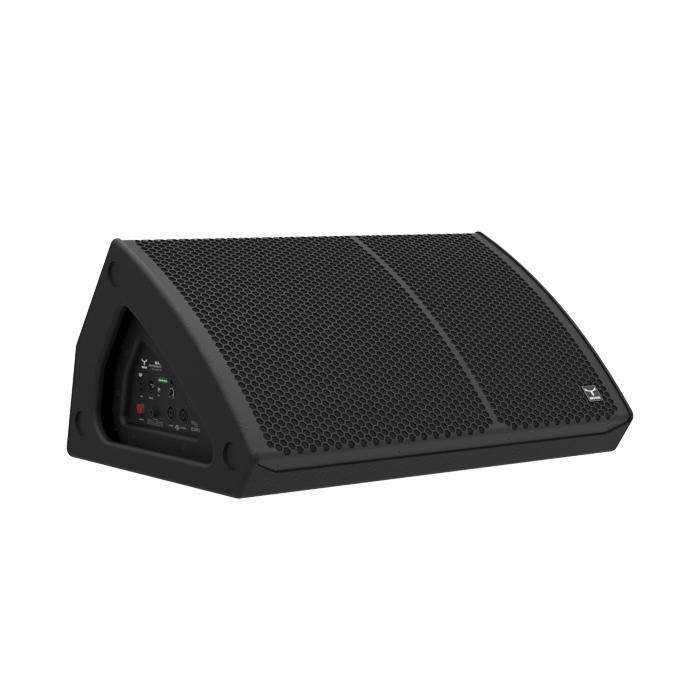

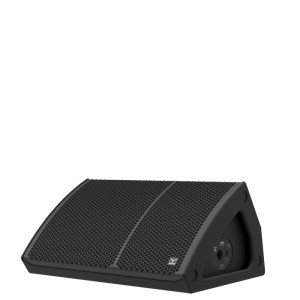

MA12

Key Features

  • Multipurpose wedged stage monitor
  • Passive and active versions available
  • 12" (2.5in VC) MF + 1" (1.73in VC) HF EU transducers
  • User-rotatable CD horn 90°x60° for ideal dispersion
  • 2-channel Class D amplifier with integrated DSP
  • Universal 85-264Vac mains, SMPS with PFC
  • Prepared for wall and Truss mounting
  • Elegant looking professional enclosure
  • Rugged and durable 15mm birch plywood, polyurea coating
Interested in this Product? Contact us!

Tech Specs

Type

2-Way active monitor

Enclosure Design

Wedged cabinet - bass reflex

Power Output (RMS)

360W (RMS)
510W (Program)
900W (Peak)

Frequency Range

65Hz - 18kHz

Nominal Impedance

N/A

Transducer Type

12" MF (2.5in VC) EU transducer
1" HF (1.73in VC) EU transducer

Dispersion

CD horn, 90°x60° and 60°x90°
User-rotatable

Crossover Frequency

DSP controlled with selectable presets
48KHz sampling frequency
24 bit AD/DA converter

Max. SPL (peak)

127dB @ 1m

Amplifier type

Class D, 2 channel amplifier

Amplifier output

800W + 400W (continuous)
1500W (peak)

Input

XLR/jack combo connector

Output

XLR/M 3p

Indicators

Power, signal/preset, clip

Controls

Master level control, 4 selectable presets

Feature

Cooling by convection

AC Power Supply

Switching power supply, 85-264Vac with PFC

AC mains connector

Neutrik® powerCON, Power-in (blue) / Power-out (grey)

Protection

Over current and short circuit protection, thermal protection,
DC output protection and HF protection (amplifier)

Construction

15mm birch plywood, textured polyurea coating

Grille

Custom perforated metal grille with acoustic foam

Installation / Rigging / Flying

4 rubber feet
Side handles, 4x M8 inserts + 2x M10 inserts
Prepared to fit a "U" bracket

Dimensions (WxDxH)

630x425x330mm
24.80x16.73x12.99in

Weight

26Kg
57.32lb
