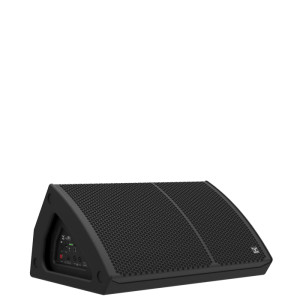

M15

Key Features

  • Multipurpose 2-way stage monitor
  • Bass reflex wedged enclosure
  • 15" (2.5in VC) MF + 1" (1.73in VC) HF EU transducers
  • User-rotatable CD horn 90°x60° for ideal dispersion
  • 2x NL4 parallel-connected
  • Prepared for wall and Truss mounting
  • Elegant looking professional enclosure
  • Rugged and durable 15mm birch plywood, polyurea coating
Interested in this Product? Contact us!

Tech Specs

Type

2-Way passive monitor
Enclosure Design

Wedged cabinet - bass reflex
Power Output (RMS)

410W (RMS)
820W (Program)
1600W (Peak)
Frequency Range

50Hz - 19kHz
Nominal Impedance

8Ohm
Crossover Frequency

2000Hz
Transducer Type

15" MF (2.5in VC) EU transducer
1" HF (1.73in VC) EU transducer
Dispersion

CD horn, 90°x60° and 60°x90°
User-rotatable
Max. SPL (peak)

129dB @ 1m
Input Sensitivity

96dB
Connector

2x NL4, parallel-connected
Construction

15mm birch plywood, textured polyurea coating
Grille

Custom perforated metal grille with acoustic foam
Installation / Rigging / Flying

4 rubber feet
Side handles, 4x M8 inserts + 2x M10 inserts
Prepared to fit a "U" bracket
Dimensions (WxDxH)

730x485x360mm
28.73x19.09x14.17in
Weight

25Kg
55.16lb
